New G-Shock DW-5600 and DW-6900 have new modules with LED light and longer battery life

G-Shock DW-5600 LED Light Super Illuminator

We previously mentioned this in our coverage of the skeleton green DW-6900JT and the silver DW-5600FF, and now there is official confirmation that these new models are equipped with new modules. The new DW-5600 module is 3525 and the new DW-6900 module is 3529.

These modules have the same functions as the previous modules (and share the same functions themselves), but they are now equipped with an LED backlight, also known as a Super Illuminator, instead of the old electro-luminescent (EL) backlight. The LED light is more power-efficient and has a white color instead of the blue green of the EL backlight. The new modules offer better battery life of approximately 5 years versus 2 years for the previous modules. According to Casio manuals, the EL backlight “loses its illuminating power after very long term use,” and I can verify that this is very much the case with some of my G-Shock watches with EL backlights from the 2000s. The instruction manuals for the new modules with the LED light have no such warning, but they do warn that “frequent use of illumination will run down the battery.”

According to an official image of the DW-5600FF (above), the light does not look like what you would expect, meaning that there is something very different about it and the LED lights on previous squares like the GMW-B5000 and 5000U Series. You’ll see that the DW-5600FF (below) has a positive (i.e. noninverted) LCD display, but in the image of the watch above with the LED light activated, the display takes on the appearance of an inverted LCD display, with a dark background and light digits with the digits being illuminated rather than the background. (I don’t recall ever seeing this reversing effect before.) We don’t yet have any images or videos of the LED light of the DW-6900JT (which has an inverted LCD display in its normal state), so we don’t know if that will appear like a positive LCD display with the LED light activated, or if it will stay inverted. We also don’t know if the lights on future models will have the same effect as the DW-5600FF. (We would also like to see more of the DW-5600FF to verify that this isn’t some kind of mistake.)

(Update: Thanks to some of our readers for confirming that this reversing effect has been done on some previous models. So it is probably specific to the DW-5600FF-8 and may not be implemented on all new DW-5600/DW-6900 models.)

While it is likely that future DW-5600 and DW-6900 models will use the new modules, it remains to be seen if standard existing models like the DW-5600E-1V and DW-6900-1V will be updated with them.

The DW-5600FF-8 and DW-6900JT-3 are the first models with the new modules and LED lights.

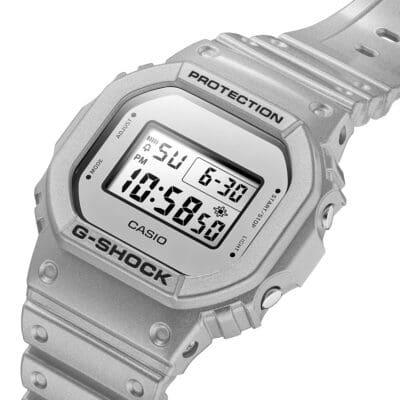

G-Shock DW-5600FF Angle

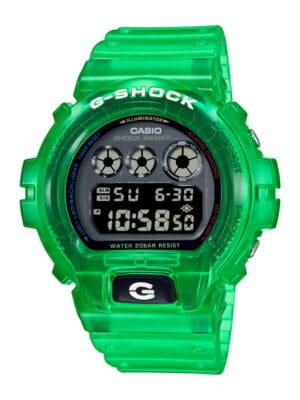

G-Shock DW-6900JT-3

14 Comments
Inline Feedbacks
View all comments
Reta
Reta
1 year ago

This cool reverse-LED effect was also on the Rag & Bone A1000 collab. It is a nice effect.

D-Man
D-Man
1 year ago

I bet it’s a mistake. Physically, the way the LCD’s are assembled w/the polarizing filters and whatnot, I don’t think this is possible.

Ginseng108
Ginseng108
1 year ago

The LCD in the DW-5600FF example above behaves exactly like the LCD in my GW-9125D Anniversary Gulfman with “mirror” LCD. It has and EL panel, but I don’t think that’s a meaningful difference.

Under normal lighting, it appears positive. But hit the Light button and the digits glow.

Last edited 1 year ago by Ginseng108
Adel
Adel
1 year ago

The Metallic Mirror Face series from 2018 have that backlight. Such as the DW-5600BBMA-1 and so on. It looks fantastic.

Ginseng108
Ginseng108
1 year ago
Reply to  G-Central

My pleasure. It would be fine if this type of LCD didn’t see more use. It’s really tricky to read and can go from readable to totally washed out with just a slight turn of the wrist. It’s also an LCD design that is very picky about the lighting situation in general and can swing from high to nearly zero contrast as the lighting sources, natural or artificial, move in relation to the watch. It’s beautiful but finicky.

Aria
Aria
1 year ago

The reason for change is only price! Led backlight is much cheaper, Sadly Casio follow the Apple way, make product cheaper but will rise the price to maximize the profit.

They use same light system (as describe above) in cheap w-217h-1( normal screen but negative when led is on)
The reason for using bioplastic is also price, it’s cheaper but not durable as regular plastic

As a Casio fan and collector for more than 30 years, I recently decided to not purchase any new model, Casio somebody made a tw-7100, solar,200m, titanium, I have one, work without any problem more than 40 years and even battery not changed

But new Casio models have a tendency to be look like something pricy, but cheaper bill of materials and obviously not durable.

Super Sad!

Aria
Aria
1 year ago
Reply to  G-Central

Yes, bioplastic simply degrading by normal bacterias activities in the environment, their main use are for plastic bottles, bags and disposable items for a simple reason, if they entered the environment, simply dissolve in the water or soil

Plastic usage for watch making is among few applications that using bioplastic is not good, because you want to use your plastic watch for decades,

And after 6-7 years with complete normal usage, your plastic watch with bio bioplastic will destroy.

Luc Albert
Luc Albert
1 year ago

The DW-5600MW uses an EL backlight and has the reverse screen effect just like the LED in this photo
